Any drawing statements that are part of an object definition are executed relative to the object's origin. For graphical objects, the drawing statements are specified in X and Y coordinates. For example:



key C at position 150 250

    draw by 100 175

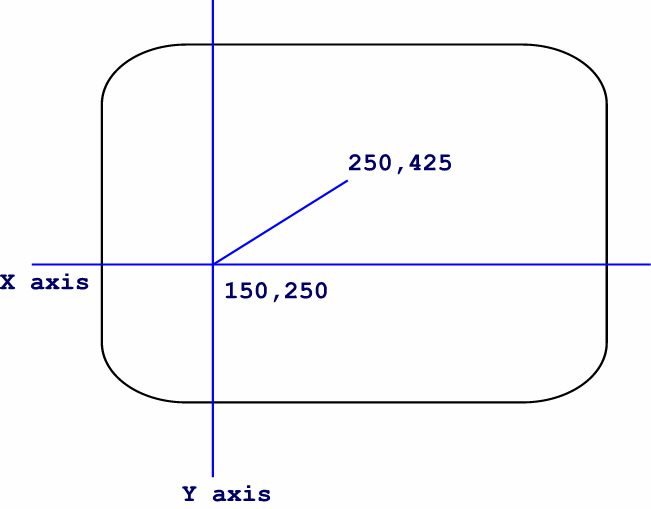

The image that would appear on the screen is:



_img251

You can specify negative numbers as coordinate positions. Suppose that ESL next executes the following draw statement:



draw 0 -100

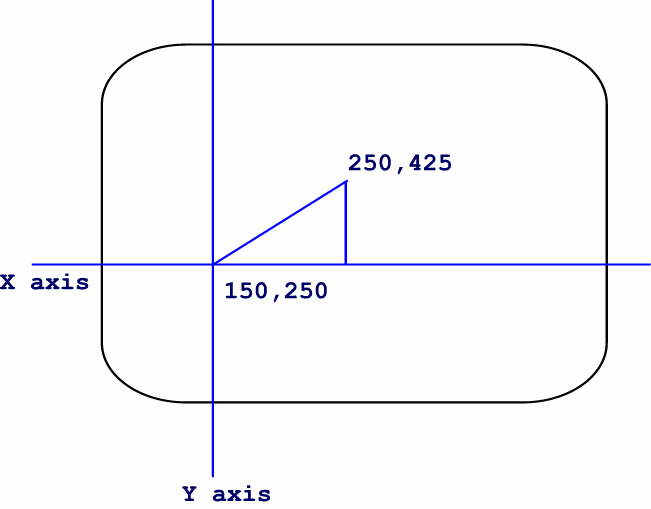

ESL draws the following line:





_img252
